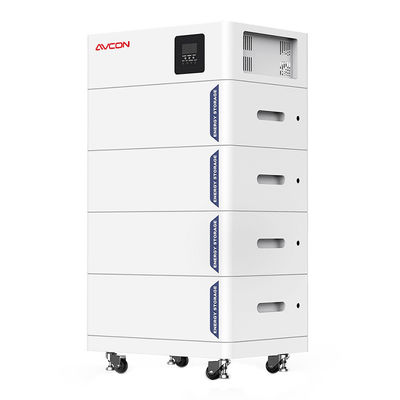

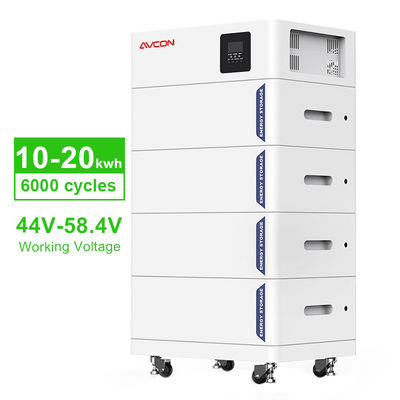

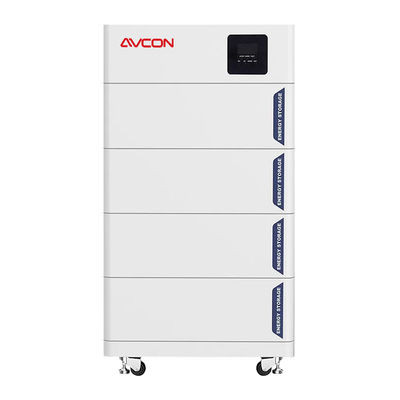

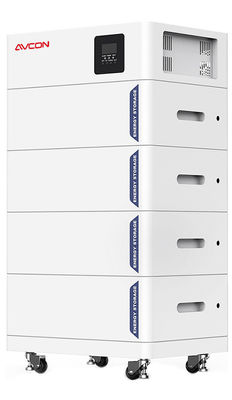

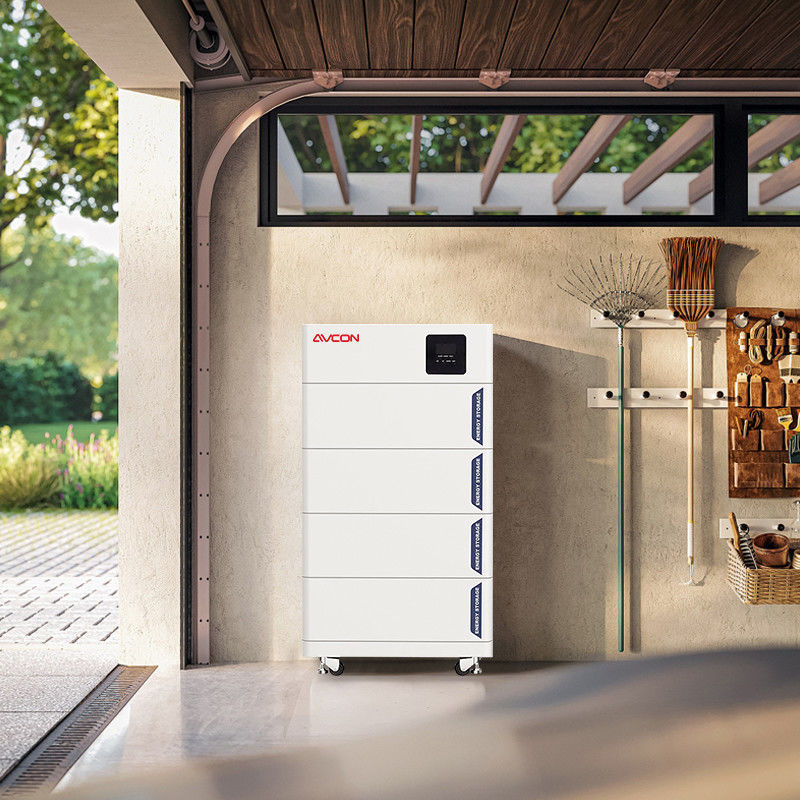

All-in-One 5Kw to 50Kw Home Energy Storage System Stackable 48V Solar Lithium-Ion Battery 200Ah Capacity CAN Communication Port

All-in-One 5Kw to 50Kw Home Energy Storage System Stackable 48V Solar Lithium-Ion Battery 200Ah Capacity CAN Communication Port

All-in-One 5Kw to 50Kw Home Energy Storage System Stackable 48V Solar Lithium-Ion Battery 200Ah Capacity CAN Communication Port

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HP Poewer
Model Number:	48V205AH

Contact Now

Detailed Product Description

Battery Type:	LiFePO4	System Voltage:	48V
Output Power Range:	5~10 KWh	Dimension (LWH):	900230730mm
Weight:	115kg	System Type:	Stackable, Rack-mounted
Type:	All-in-one	Communication Port:	Rs485, CAN, WIFI
Protection Class:	IP20	Grid Connection:	Hybrid Grid, Off Grid
Product Name:	Energy Storage System	Energy:	10KWH (LiFePO4)
Application:	Home Appliances	Capacity:	200Ah
Voltage:	51.2V(48V)	OEM/ODM:	Accepatable
Apllication:	Solar Power Energy Storage	Battery Cell:	3.2V LifePO4 Cell
Installation:	Stacked Floor Mount

Rated Capacity	5kwh 10kWh 15kwh 20kwh
Nominal Voltage	51.2V
Working Voltage	44V-58.4V
Nominal Discharge Current	100A 200A 300A 400A
Nominal charging Current	50A 100A 150A 200A
Cycle Life	6000 cycles (@80% DoD)
Communication Protocol	CAN/RS485/RS232 (WIFI optional)
Gross/Net Weight (Battery Part)	53.5kg/49kg 107kg/98kg 160.5kg/147kg 214kg/196kg
Battery Rated input Voltage	48Vdc
Hybrid Max. charging Current	80A
Battery Pack Voltage Range	40Vdc-60Vdc
