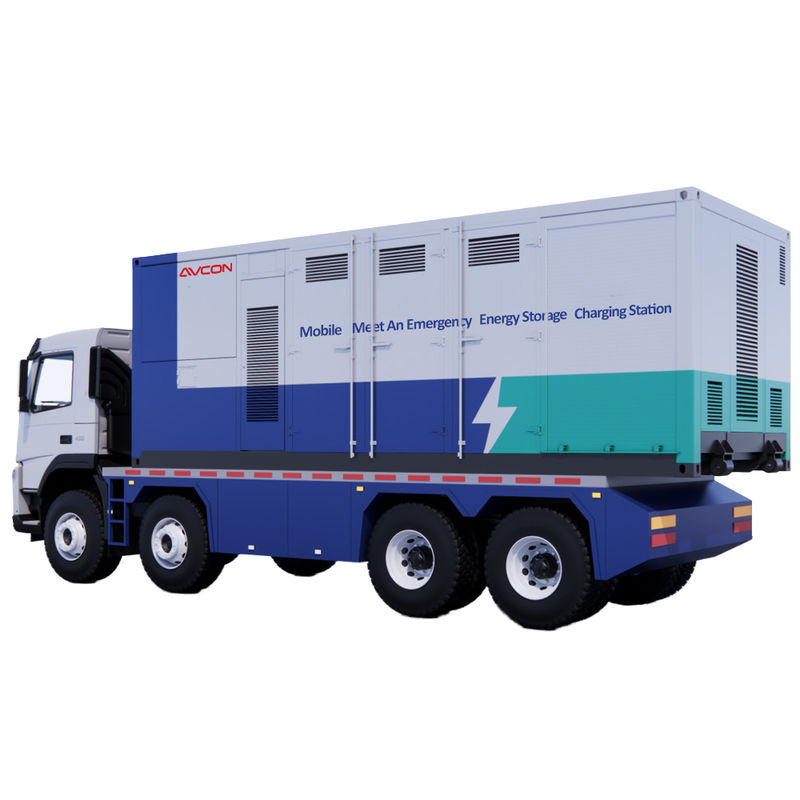

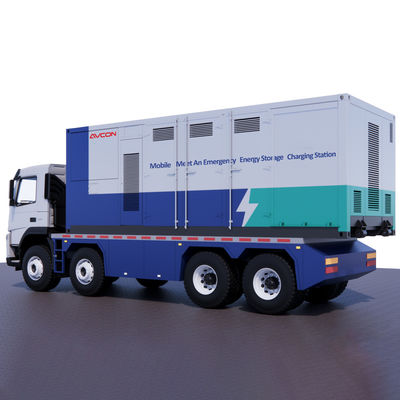

Name: Avcon Mobile 1MWh Energy Storage System Lifepo4 Battery 4 Charging Stations 20Ft Container-Emergency Communication Port (CAN)
Brand: Huaping Smart Information Technology(shenzhen) Co., Ltd.
Availability: InStock

Home Products Mobile Emergency Energy Storage Energy Storage

Avcon Mobile 1MWh Energy Storage System Lifepo4 Battery 4 Charging Stations 20Ft Container-Emergency Communication Port (CAN)

Product Details:

Place of Origin:	China
Brand Name:	Avcon

Contact Now

Detailed Product Description

Battery Type:	LiFePO4, LiFePO4	Dimension (LWH):	6800mm2550mm2410mm
Weight:	22T	Communication Interface:	CAN/Ethernet/RS485/4G
Communication Port:	CAN	Application:	Commercial Energy Storage Container
Product Name:	Mobile Container System Charging Station	Warranty:	5 Years
Battery:	Lithium LifePO4 Battery Packs

System Parameters
Size (DWH)	680025502410mm
Weight	22 T
Fire Fighting System	Support PACK level, Cluster level and Box level fire fighting
Anti-corrosion class	C3 (C4\C5 optional)
Protection class	IP55
Operating Temperature Range	-20 ~ +50 >45℃ derating
Storage Temperature	-20 ~ +55 SOC@30%~40%
Operating Humidity Range	0~95%RH No Condensation
Mounting Type	Outside or on-board mounting Reinforced Hook-and-Arm Container
System Communication Interface	CAN/Ethernet/RS485/4G
External system communication protocol	Modbus TCP, MQTT
Altitude [m]	≤3000
